ARRA mesh network platform solution has been chosen for a school connectivity program paid for by US Federal Cares Act funding to be deployed in the City of Dallas.
O B J E C T I V E _
Provide broadband connectivity to the unconnected students in the Dallas area. Speed and flexibility of deployments were high requirements followed by network resiliency and easy-to-use remote management of all facets of network operations.
Discussions are underway with the City of Dallas to deliver Phase 2 of the project which will provide Wi-Fi to students and households throughout the city.
![City of Dallas 1 Deployment Map](https://www.arranetworks.com/wp-content/uploads/2021/01/Deployment-Map-1024x467.jpg)

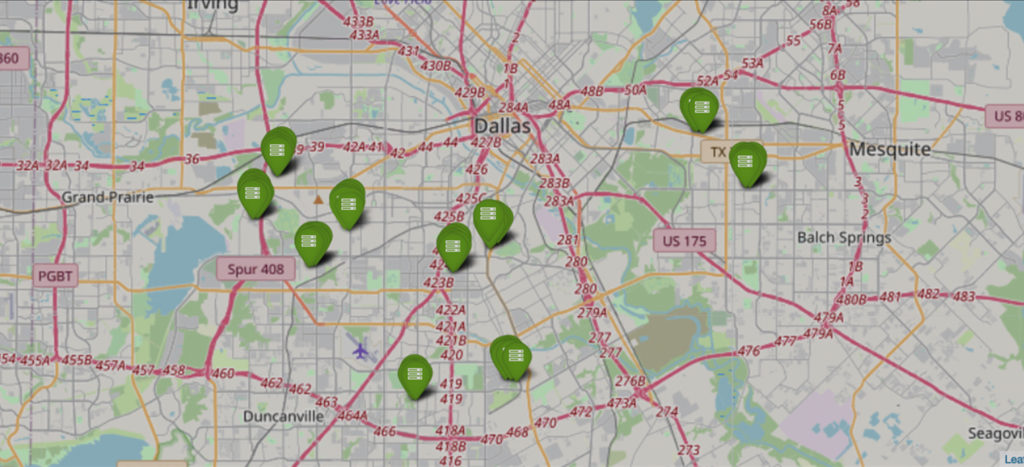

Dallas Deployment
![City of Dallas 2 Firestation 23](https://arranetworks.com//wp-content/uploads/2021/01/Firestation-23-ARRANMS-map@2x-scaled.jpg)
Fire Station 23
![City of Dallas 3 Singing Hills](https://arranetworks.com//wp-content/uploads/2021/01/Singing-Hills-Map@2x-scaled.jpg)
Singing Hills
![City of Dallas 4 Polk](https://arranetworks.com/wp-content/uploads/2021/01/Polk.jpg)
Polk
![City of Dallas 4 Polk](https://arranetworks.com/wp-content/uploads/2021/01/Polk.jpg)
Pleasant Oak
![City of Dallas 6 Martin Weiss](https://arranetworks.com/wp-content/uploads/2021/01/Martin-Weiss.jpg)
Martin Weiss
![City of Dallas 7 Fire St 52](https://arranetworks.com/wp-content/uploads/2021/01/Fire-St-52.jpg)
Fire Station 52
![City of Dallas 8 Fire Station 50](https://arranetworks.com//wp-content/uploads/2021/01/Fire-Station-50-Map@2x-scaled.jpg)
Fire Station 50
![City of Dallas 9 Fire Station 32](https://arranetworks.com//wp-content/uploads/2021/01/Fire-Station-32-Map@2x-scaled.jpg)
Fire Station 32
![City of Dallas 10 Berkely Saner](https://arranetworks.com//wp-content/uploads/2021/01/Berkely-Saner@2x-scaled.jpg)
Berkely Saner
![City of Dallas 11 Arcadia](https://arranetworks.com//wp-content/uploads/2021/01/Arcadia-Map@2x-scaled.jpg)
Arcadia
How Units Are Configured
- Nodes are up to 200 meters apart in suburban environments
- Overlapping node coverage ensures connectivity in case of any individual node outage
- 5GHz connects the nodes
- 2.4 GHz distributes Wi-Fi to the students’ homes

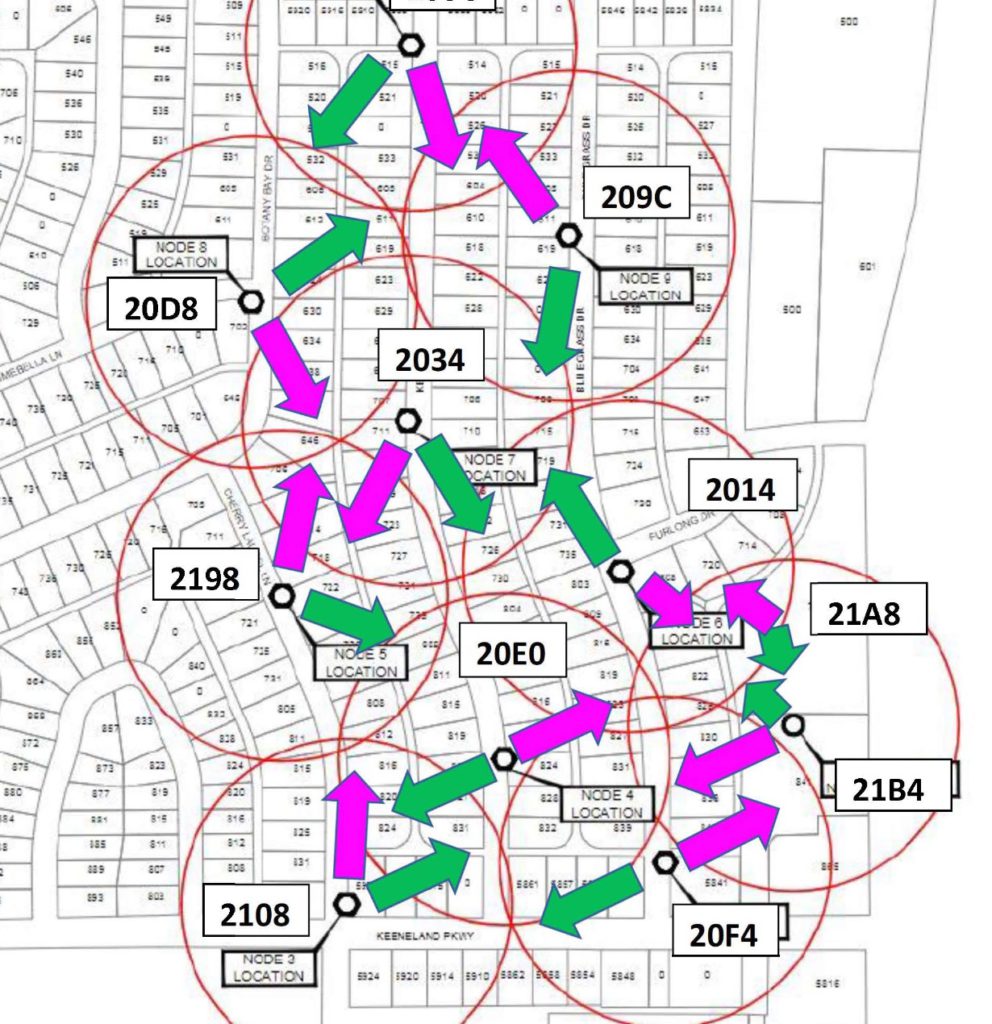

![City of Dallas 12 Nodes Map@2x](https://www.arranetworks.com/wp-content/uploads/2021/01/Nodes-Map@2x-992x1024.jpg)
Power Options
![City of Dallas 13 Backhaul Power Option](https://www.arranetworks.com/wp-content/uploads/2021/01/Backhaul-Power-Option@2x-681x1024.jpg)

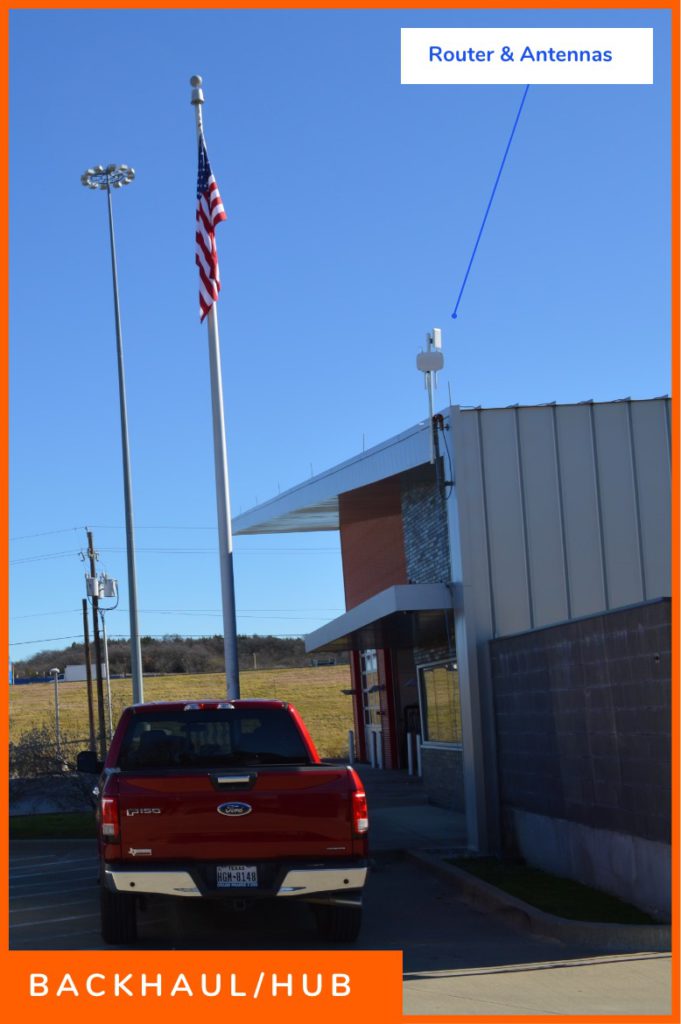

Sources providing Backhaul are powered through POE at 48VDC
![City of Dallas 14 telecom poles 01@2x](https://www.arranetworks.com/wp-content/uploads/2021/01/telecom-poles-01@2x-682x1024.png)

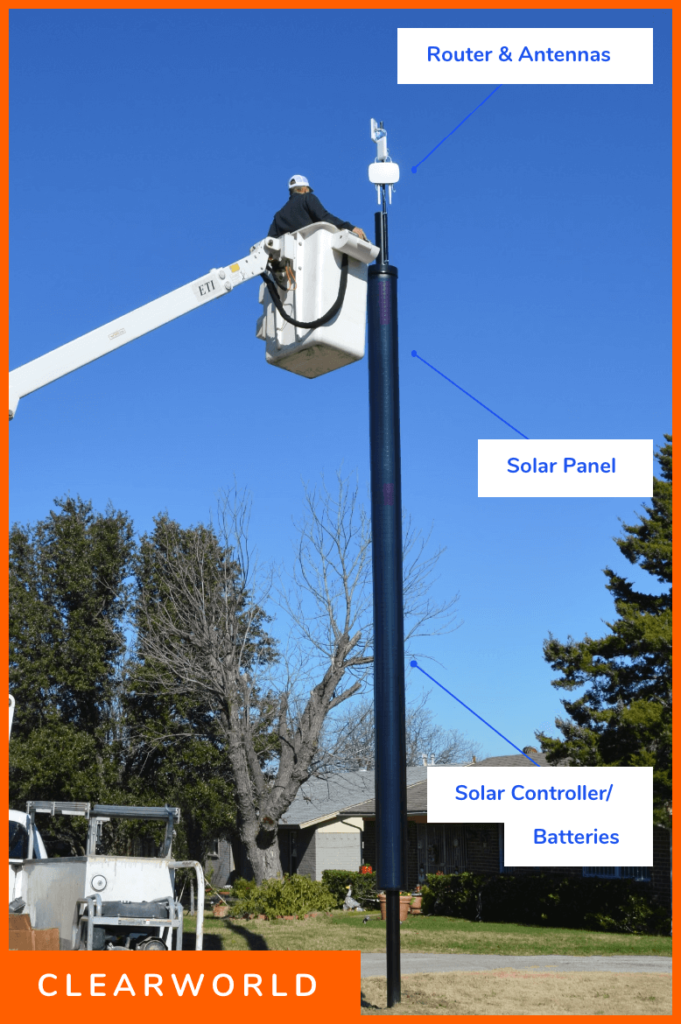

![City of Dallas 15 Clearworld Solar Pole](https://www.arranetworks.com/wp-content/uploads/2021/01/clearworld-poles-01@2x-681x1024.png)

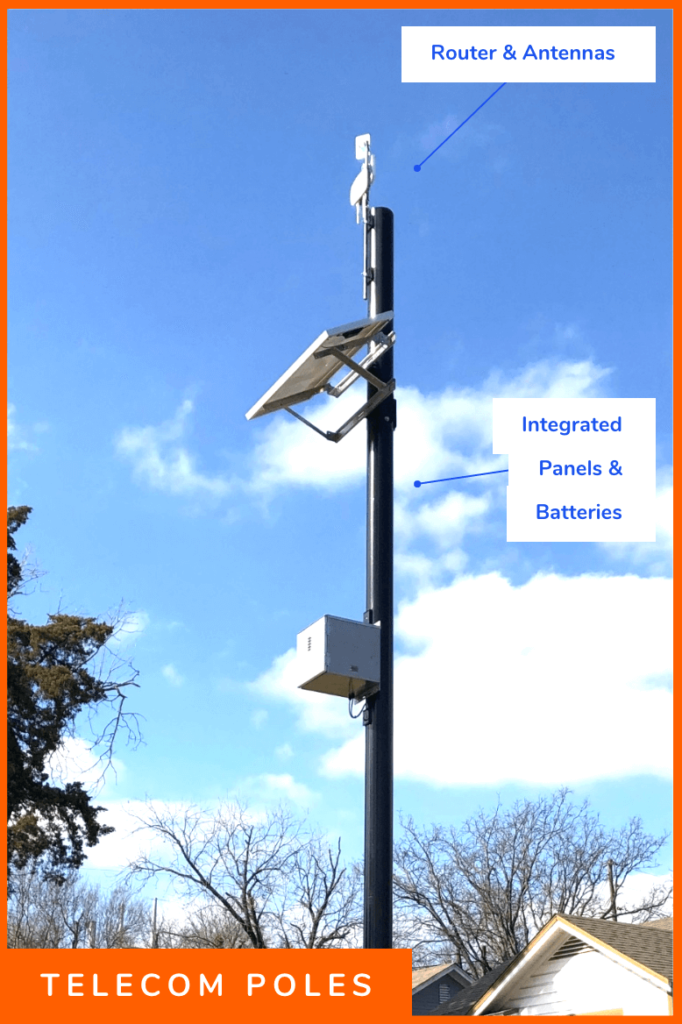

ALL other nodes are powered by solar (minimum 24VDC)
Poles Used For Deployment
(NeoNetworks Installation)

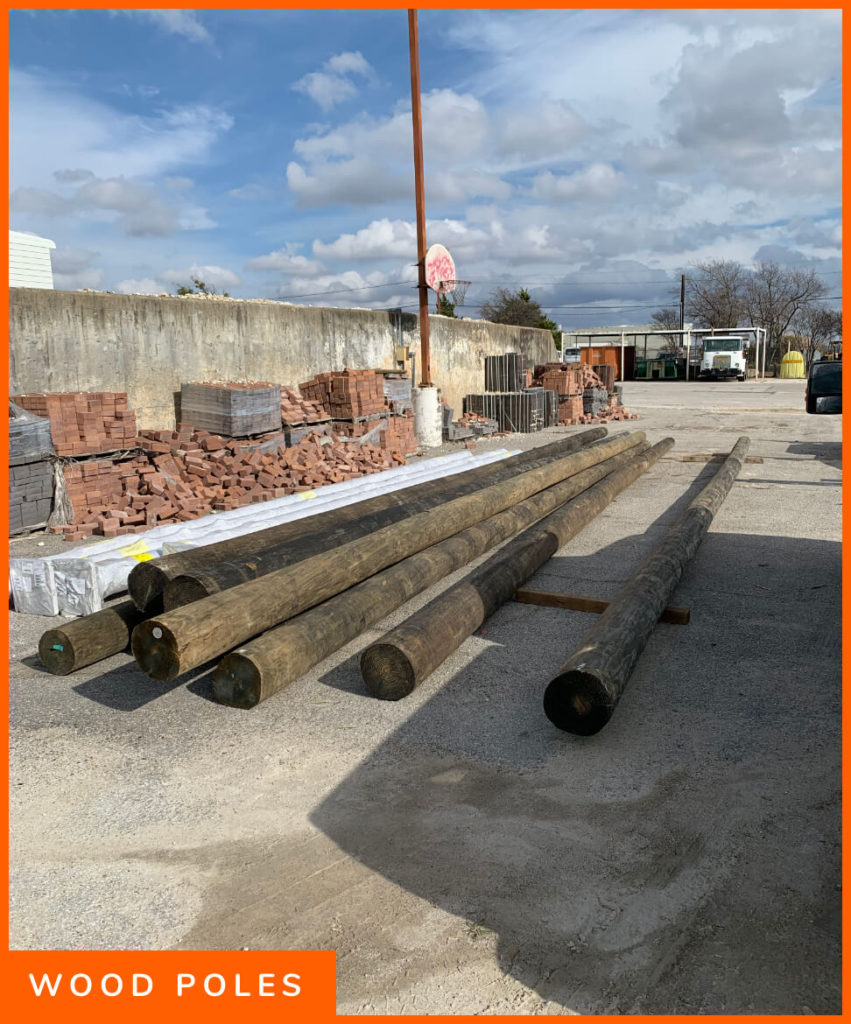

![City of Dallas 16 Wood Poles](https://www.arranetworks.com/wp-content/uploads/2021/01/Solar-Poles@2x-851x1024.jpg)

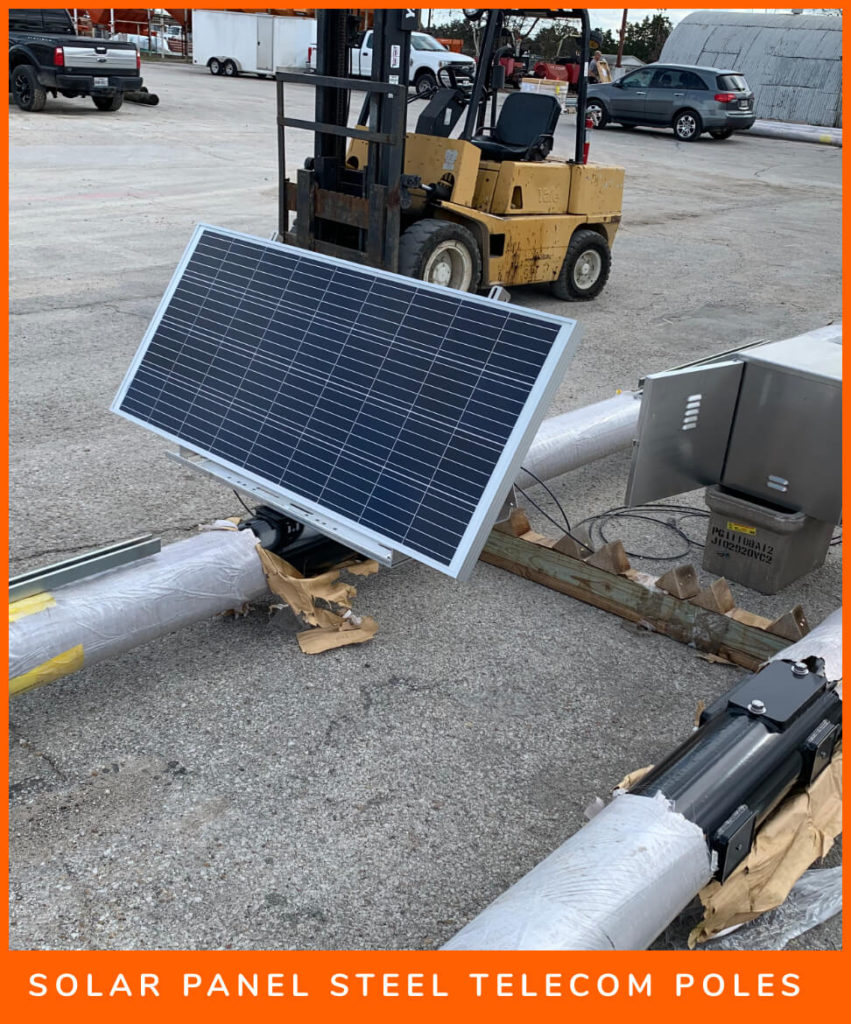

![City of Dallas 17 Solar Panel Steel Telecom Poles@2x](https://www.arranetworks.com/wp-content/uploads/2021/01/Solar-Panel-Steel-Telecom-Poles@2x-851x1024.jpg)

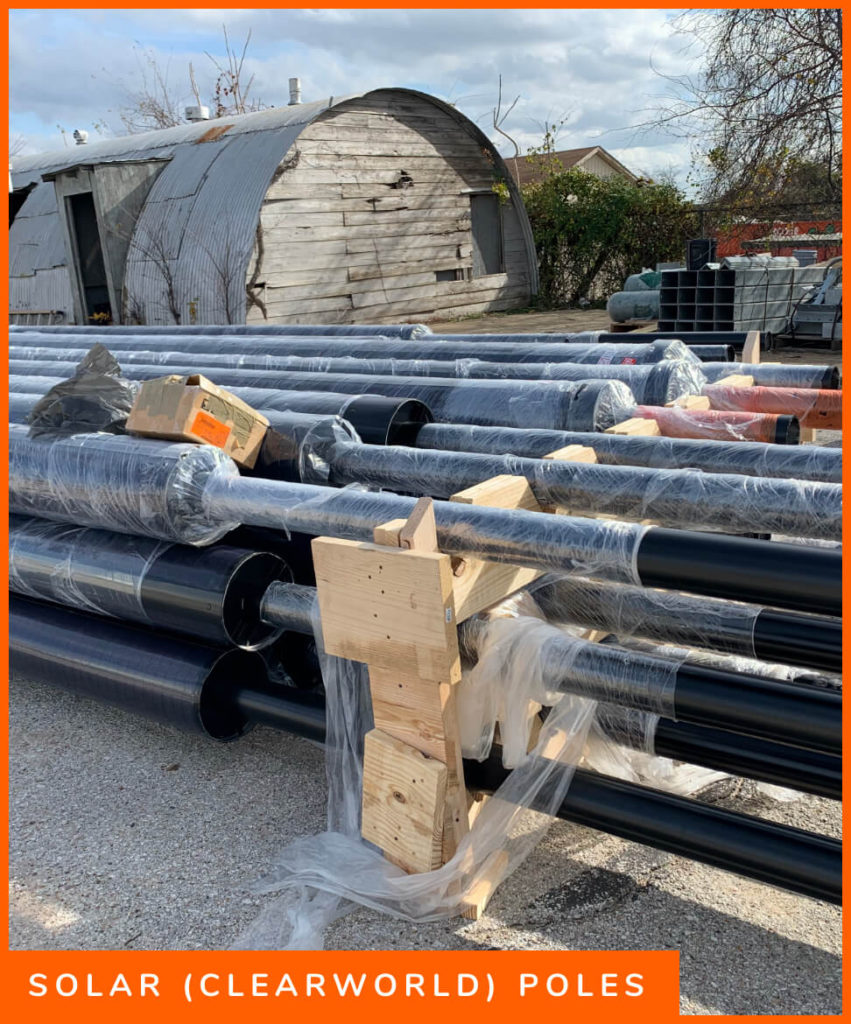

![City of Dallas 18 Solar Clearworld Poles@2x](https://www.arranetworks.com/wp-content/uploads/2021/01/Solar-Clearworld-Poles@2x-851x1024.jpg)
Rural vs. Urban Deployment
Most unconnected areas have access to nearby fiber – but can’t afford to distribute that connectivity across the landscape to individual homes and businesses. ARRA’s innovation solves this problem for both urban and rural deployments, but there are differences.
K E Y D I F F E R E N T I A T O R S _
- Distance. In suburban environments, routers are placed up to 200 meters from one another. However, in rural environments, the routers can be up to a mile away from one another without loss of performance.
- Urban and suburban environments allow multiple users to access unique nodes, where rural applications may only yield one family per node.
- Factors to consider:
- Line of sight
- Landscape features (e.g. hills/depressions)
- Antenna height
Backhaul Requirements
No-fuss plug and play backhaul via existing fiber, copper, LTE, Ethernet, or satellite.
- Provides ultimate flexibility
- Automatic load balancing
- Organic network growth won’t break the network like traditional methods.
- Provides each node with the opportunity to optimize its signal (the more points of backhaul, the better)
- Helps ensure network stability
- Eliminates single point of failure (but will run off a single “base”)

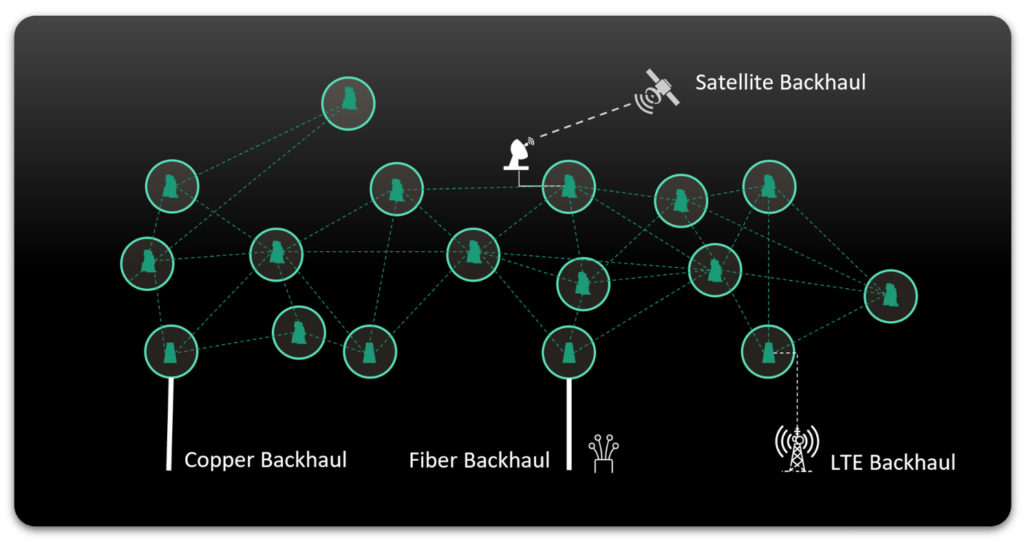

![City of Dallas 19 Backhaul Diagram](https://www.arranetworks.com/wp-content/uploads/2021/01/backhaul-pic-dark-bg@2x-1024x542.jpg)
